Estado de conservação: 9/10

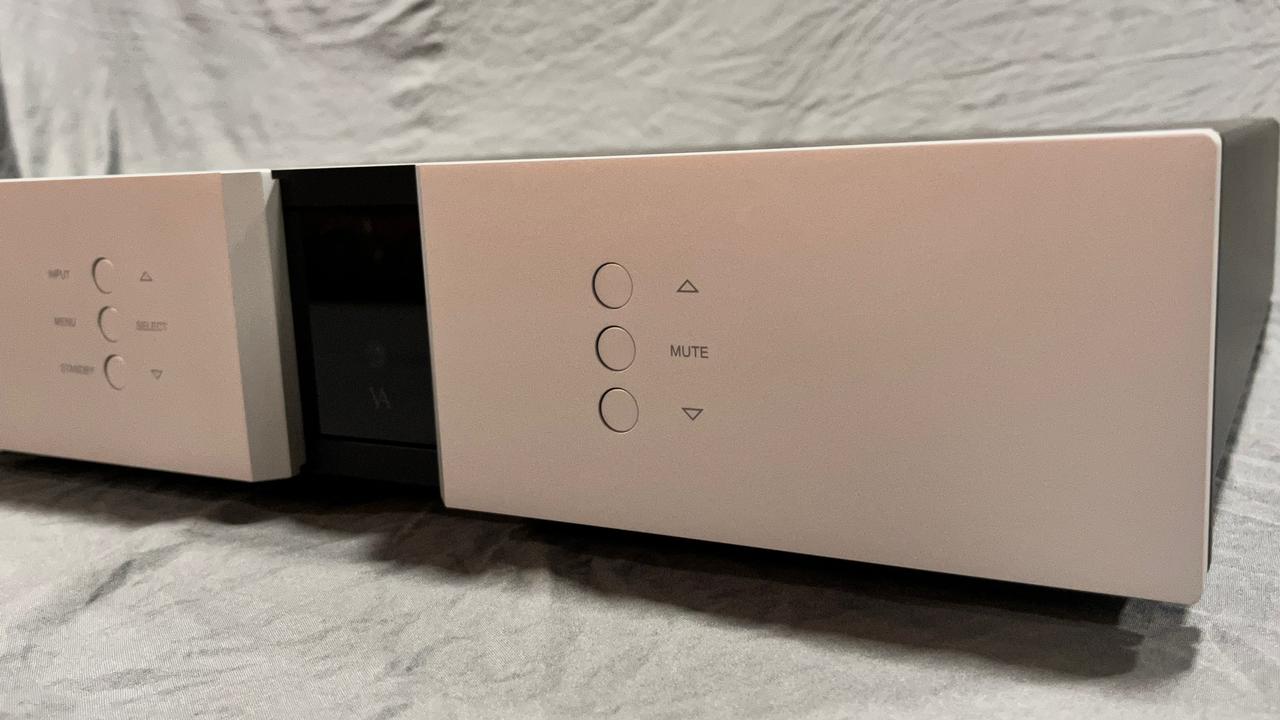

The RL-101, is our one of our latest additions to the Reference Series. In 2004 Roy Gregory at HiFi+ reviewed the RP and RL-100. He was more than thrilled with the performance of both units, and hence they both received an award for their performance. |
The new RL-101, is simply an upgraded version of the RL-100. The RL-101 does not use a battery power supply, as the technology we have developed for our Signature and Master Piece Series offers superior performance over any battery driven power supply. As with all our other products, the RL-101 is based on modules, which gives the owner a lifetime warranty on performance, as any new sound enhancing modules can easily be installed by the owner. | The volume control is our usual relay based technology used throughout our product range. It is designed in such way, that only one fixed resistor is in series with the signal at any volumestep. It offers both RCA and XLR inputs and outputs for optimal compatibility with any system configuration . |
Specifications
<cellpadding=”10px”>Input Available: XLR: 3 (L+R) / RCA: 2 (L+R) Sensitivity: Impedance: Slew rate: Output Impedance: |
Frequency response:
XLR: +800KHz / RCA: +800KHz
Signal to noise ratio:
XLR: > 110dB / RCA: > 110dB
THD + noise:
XLR: > 0,01% / RCA: > 0,01%
Power Consuption
Standby:
30 WRMS
Operation:
30 WRMS
Volume Control
Type:
Relay controlled / fixed resistor network
Gain:
-91,5dB to +18dB
Dimensions:
Height: 100mm
Width: 435mm
Depth: 377mm
Weight:
9kg
Power Consuption
Standby:
30 WRMS
Operation:
30 WRMS
