Descrição
CONDIÇÃO: 9/10
Specifications

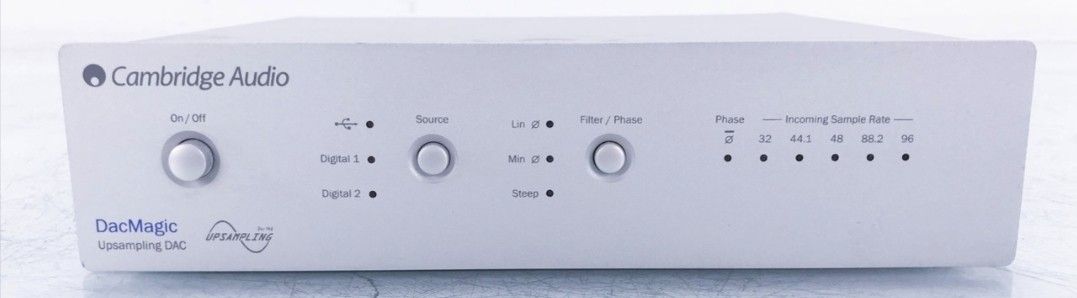

Description: Two-channel, oversampling D/A processor with Wolfson WM8740 24-bit DACs and Texas Instruments TMS 320VC5501 digital filter. Digital inputs: S/PDIF coaxial or TosLink optical, USB. Digital input sampling frequencies supported 44.1kHz, 48kHz (32kHz, 88.2kHz, 96kHz, S/PDIF only). Digital outputs: S/PDIF coaxial and TosLink optical. Analog outputs: balanced (XLR), single-ended (RCA). Frequency response: 20Hz to 20kHz ±0.1dB. THD (1kHz, 0dBFS, 24-bit data): <0.001%. S/N Ratio: 112dB. Total correlated jitter: <130ps. Channel separation: >100dB at 1kHz, >90dB at 20kHz. Output impedance: <50ohms. Maximum output level: 2.1V RMS (unbalanced), 4.2V RMS (balanced).
Dimensions: 2″ (52mm) H by 8.6″ (215mm) W by 7.6″ (191mm) D. Weight: 2.6lbs (1.2kg).
